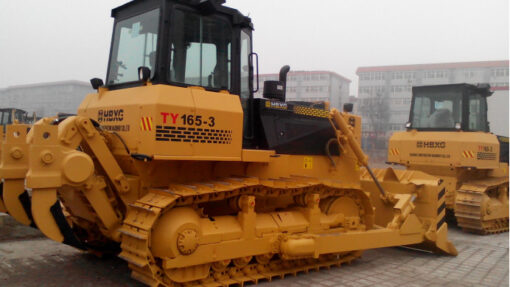

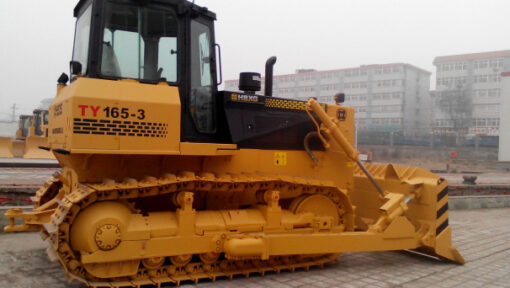

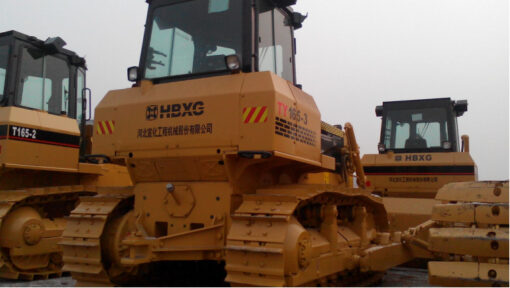

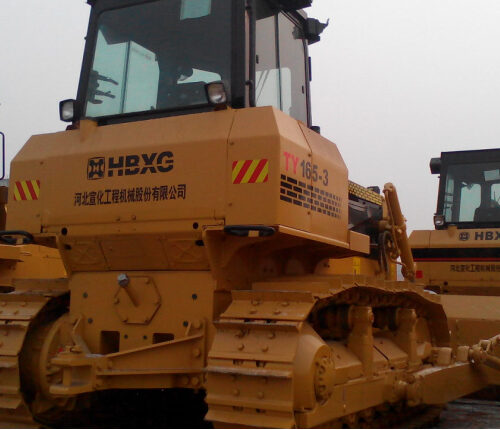

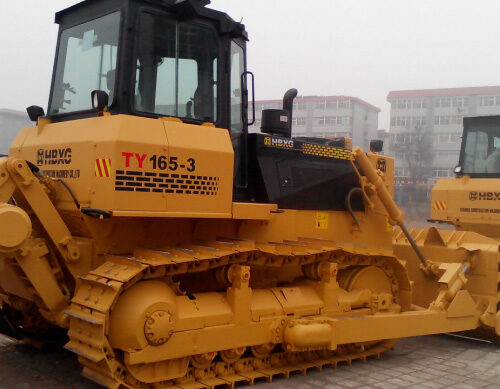

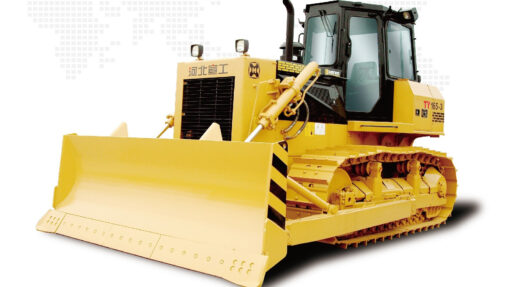

TY165-3 Bulldozer
Send Inquiry
TY165-3 bulldozer is 165 horsepower track-type dozer with hydraulic direct drive, semi-rigid suspended and hydraulic assisting operating, pilot hydraulic blade control.TY165-3 bulldozer is characterized by high efficient, open view, optimized structure, easy operation and service with low cost and reliable entire quality. It can be equipped with three shanks ripper, U-blade (5.2 cubic meter capacity) and other optional components.
TY165-3 bulldozer is applicable for earth handling in road construction, desert and oil-field working, farmland and port construction, irrigation and electric power engineering, mining and other engineer conditions.
It is the upgrade product of TY165-2 bulldozer.
| Specifications | ||||
| Dozer | Tilt | |||
| Operation weight (including ripper) (Kg) | 17550 | |||
| Ground pressure(including ripper) (KPa) | 68.3 | |||
| Track gauge(mm) | 1880 | |||
| Gradient | 30°/25° | |||
| Min.ground clearance(mm) | 353 | |||
| Dozing capacity(m³) | 4.6 | |||
| Blade width (mm) | 3442 | |||
| Max. digging depth (mm) | 420 | |||
| Overall dimensions without ripper (mm) | 5447×3442×3160 | |||
| Engine | ||||
| Type | 潍柴WD10G178E25 | |||
| Rated revolution (rpm) | 1850 | |||
| Rated power (KW) | 121/165 | |||
| Max. torque (N•m/rpm) | 830/1100 | |||
| Rated fuel consumption(g/KW•h) | ≤215 | |||
| Undercarriage system | ||||
| Type | Swing type of sprayed beam.
Suspended structure of equalizer bar |
|||
| Number of track rollers (each side) | 6 | |||
| Number of carrier rollers (each side) | 2 | |||
| Pitch (mm) | 203 | |||
| Width of shoe (mm) | 500 | |||
| Gear | 1st | 2nd | 3rd | |
| Forward (Km/h) | 0-3.32 | 0-6.26 | 0-11.40 | |
| Backward (Km/h) | 0-4.00 | 0-7.57 | 0-13.87 | |
| Implement hydraulic system | ||||
| Max. system pressure (MPa) | 12 | |||
| Pump type | Two groups Gears pump | |||
| System output（L/min） | 190 | |||
| Driving system | ||||
| Torque converter | 3-element 1-stage 1-phase | |||
| Transmission | Planetary, power shift transmission with three speeds forward and three speeds reverse, speed and direction can be quickly shifted. | |||
| Steering clutch. | Multiple-disc oil power metallurgy disc compressed by spring. hydraulic operated. | |||
| Braking clutch | Brake is oil two direction floating band brake operated by mechanical foot pedal. | |||
| Final drive | The final drive are double reduction with spur gear and segment sprocket, which are sealed by duo-cone seal.
. |
|||
